Total Station

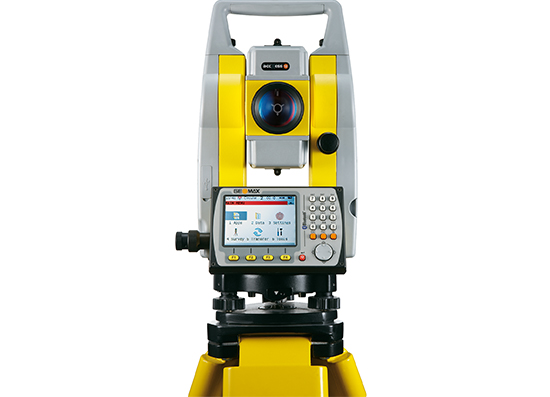

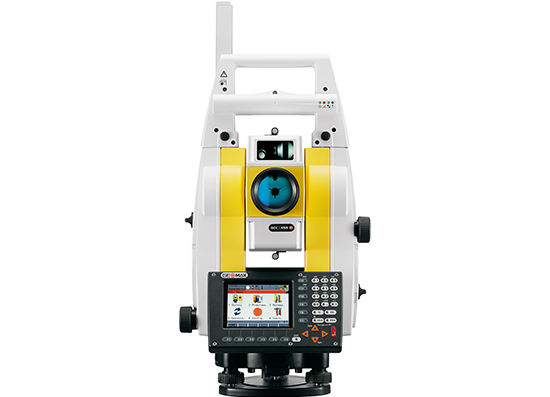

Zoom 80 Series

  • Angle accuracy 1”, 2”, 5”
  • AccXess A10 reflector less technology allowing up to 1000m reflector less measurements.
  • Servo (S) and fully Robotic (R ) models
  • Servo model comes with Scout function, finds your passive prism fully automatic
  • AIM function – highest precision any time any condition
  • Robotic model comes with Scout, AIM and TRACK – continuously follows the prism
  • Long range Bluetooth data link
  • Navigational light for easy setting out
  • X site on board software – Zoom80 Total Station and controller are supplied with Xsite software for Set up, Stake out, Volume, Hidden points, Road stake out and checking of alignment etc.
  • Removable compact flash card memory.

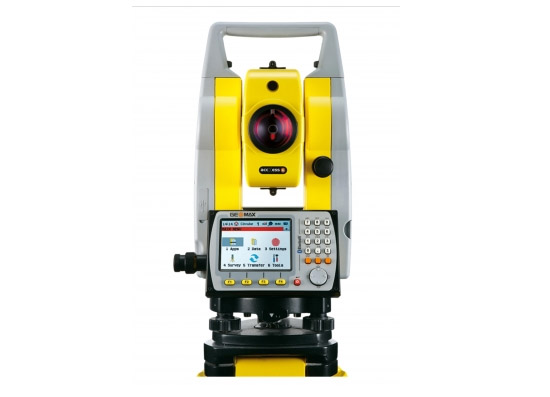

Zoom 35 Pro

  • Angle accuracy of 1”, 2”, 3”, 5”
  • AccXess A10 reflector less technology allowing up to 1000m reflector less measurements.
  • Fully Alphanumeric , wide, colour touch screen display.
  • Internal memory of 50,000 points, external USB memory, Bluetooth supplied as standard
  • Laser plummet for quick centering
  • Quadruple Axis compensation

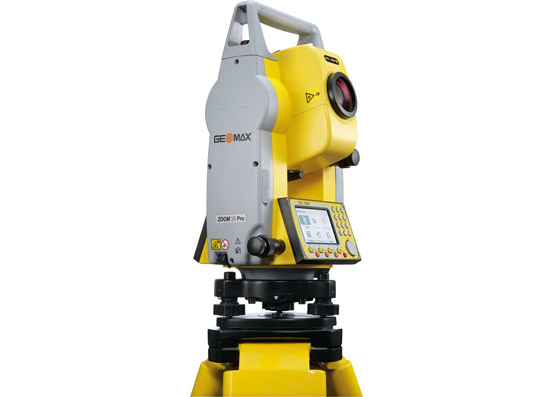

Zoom 30 Pro

  • Angle accuracy of 2”, 3”, 5”, 7”
  • AccXess A6 reflector less technology allowing up to 600m reflector less measurements.
  • Fully Alphanumeric , wide colour touch screen display.
  • Internal memory of 50,000 points, external USB memory, Bluetooth supplied as standard
  • Laser plummet for quick centering
  • Quadruple Axis compensation

Zoom 20 Pro

  • Angle accuracy of 2”, 3”, 5”, 7”
  • AccXess A4 reflector less technology allowing up to 400m reflector less measurements.
  • Fully Alphanumeric , high resolution display.
  • Internal memory of 50,000 points, external USB memory supplied as standard
  • Laser plummet for quick centering
  • Quadruple Axis compensation

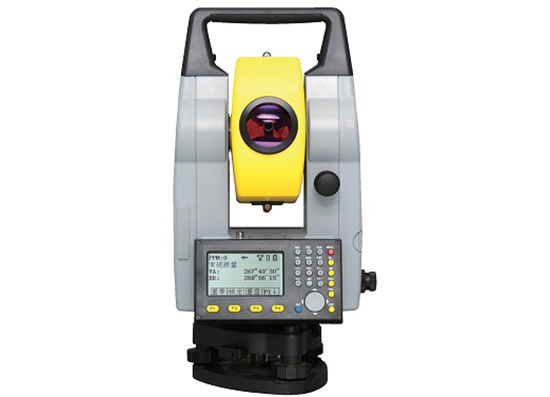

ZT20R

ZT20R series Total station is a mid way latitude Total Station with high quality, precision, technology features suitable for the majority of engineering uses.

  • 2” accuracy Total station
  • Single prism 3000m, reflector less up to 250m
  • WinCE operating system, more stable performance.
  • Large LCD screen, both sides alpha numeric identical keyboard and display
  • Laser plummet ensures accuracy, reliability
  • Dual axis compensator to meet the engineering user needs and accuracy
  • High energy Lithium batteries, working time up to 10 hrs. with low memory effect
  • Internal memory of 64MB capable of storing upto 10000 points
